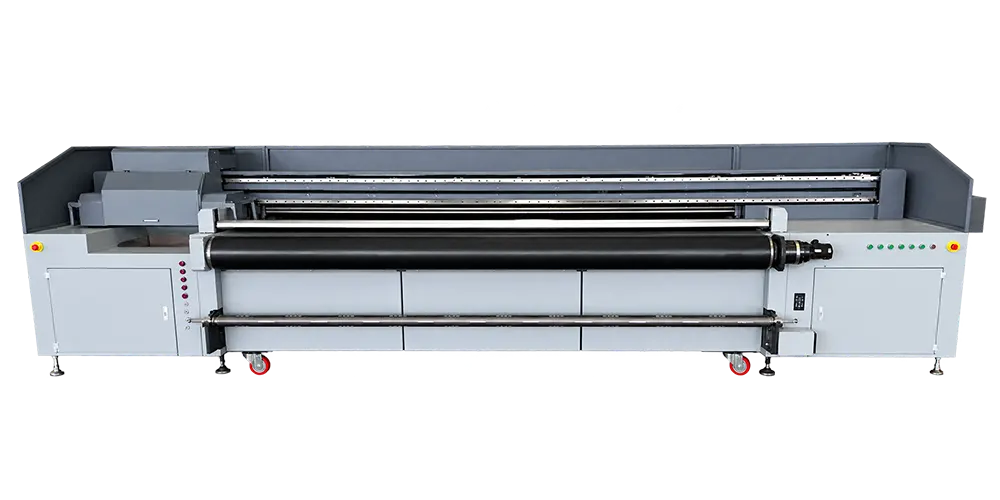

Ntek YC3200HR UV Hybrid Printer | 3.3m Rigid & Roll Printing
Versatile 3.3 metre UV hybrid printing for rigid boards and flexible roll media
The Ntek YC3200HR UV Hybrid Printer combines a wide 3300 mm print width with the flexibility to print onto both rigid boards and flexible roll-fed materials. Designed for businesses working across signage, display, décor and industrial graphics, it provides one production platform for a broad mix of applications.
-
3300 mm print width - Large-format capability for wide graphics, boards and roll-fed applications.
-
Rigid & roll media printing
Handle both sheet materials and flexible roll media on one versatile production platform. -
Ricoh GEN5 / GEN6 printheads - Industrial greyscale printhead options designed to balance print quality and productivity.
-
40–60 m²/h draft speed - Built for businesses requiring higher-volume large-format UV production.
-
White ink & varnish options - Support coloured and transparent substrates together with layered and gloss effects.
-
Automatic media protection - Automatic height detection, anti-static control and anti-collision technology help support reliable production.
One Printer for Rigid and Flexible Media - That's the Ntek YC3200HR
The Ntek YC3200HR UV Hybrid Printer gives you the flexibility to produce both rigid and flexible applications from a single wide-format production system.
With a 3300 mm maximum print width and optional front and rear extension tables of approximately 2000 mm, it can accommodate everything from roll-fed graphics to larger rigid boards and panels.
You can work with flexible materials including wallpaper, wall coverings, flex banner, mesh, vinyl and leather, alongside rigid substrates such as glass, wood, acrylic, ceramic tile, PVC, foamboard and polypropylene.
This allows you to take on a much broader mix of work without needing separate printing systems for different media types.
The YC3200HR can be configured with Ricoh GEN5 or GEN6 greyscale printheads and supports CMYK, light cyan, light magenta, white ink and optional varnish. Ntek also offers different print configurations to suit particular applications, including layered white and colour printing, varnish finishing and higher-speed CMYK production.
For faster production, Ntek quotes approximately 40 m²/h in 6-pass mode and 60 m²/h in 4-pass mode, providing a balance between print quality and throughput depending on the job.
A hard-anodised vacuum platform, automatic media-height detection, anti-static control and printhead anti-collision protection further help support reliable day-to-day operation across different applications.
| Specification | Ntek YC3200HR |
|---|---|
| Product Model | YC3200HR |
| Printer Type | UV Hybrid Printer |
| Maximum Print Width | 3300 mm |
| Media Capability | Rigid sheet and flexible roll media |
| Printhead Options | Ricoh GEN5 / GEN6 |
| Printhead Technology | Greyscale piezoelectric |
| Colour Configuration | CMYK / LC / LM / White / optional Varnish |
| Draft Production Speed | 40–60 m²/h |
| Rigid Media Support | Optional front and rear extension tables |
| Extension Table Length | Approx. 2000 mm front and rear |
| Working Platform | Hard-anodised vacuum platform |
| Media Height | Automatic media-height detection |
| Printhead Protection | Anti-collision system |
| Anti-static System | Automatic anti-static control |
| Flexible Media | Wallpaper, wall covering, banner, mesh, vinyl, leather and more |
| Rigid Media | Glass, wood, acrylic, ceramic, PVC, foamboard, PP and more |
Ntek YC3200HR Rigid and Roll Media Material Compatibility
With the Ntek YC3200HR UV Hybrid Flatbed Printer, print across rigid boards and flexible roll-fed materials from a single 3.3-metre UV hybrid platform
Rigid Media
Print directly onto a diverse range of rigid materials for signage, display, decorative and industrial applications.
Acrylic
PVC
Foamboard
Wood
Glass
Metal
Roll Media
Produce high-quality graphics o a variety of flexible and roll-fed materials, ideal for indoor and outdoor use.
Vinyl
Banner
Mesh
Wallpaper
Wall Coverings
Leather
Ntek YC3200HR Typical Applications
The Ntek YC3321L UV Flatbed Printer is ideal for a wide range of creative and industrial applications
Signage and display graphics
Interior Decor and wall panels
Personalised products
Packaging and industrial print
Disclaimer
Product specifications, features, configurations and performance figures are provided for guidance only and may vary depending on the model, printhead configuration, ink setup, software, media and operating conditions. Manufacturers may update product specifications or available options without prior notice.
Print speeds, resolutions, ink configurations and production figures are manufacturer-stated and may vary in real-world use. Media compatibility does not guarantee suitability for every individual substrate, application or finish, and testing may be required before production.
Product images are for illustrative purposes only, and the appearance, configuration and supplied equipment may differ from that shown. Optional accessories, features and configurations may be available at additional cost.
Customers are responsible for confirming that the selected system is suitable for their intended materials, applications, production environment and workflow. We recommend discussing your requirements with The Wide Format Company before ordering so that the appropriate configuration can be confirmed.
All information is subject to confirmation at the time of quotation or order. E&OE.
